ReRoute by Remidi

  ReRoute is the bridge between the Remidi T8 and your favorite music software.

Download it from the App Store and create your set: tune your sensors, customize your air-modulation, save and load it!

1) How to Download ReRoute

Go to our Download page and download the ReRoute file.  (Available by mid. Oct.)
Then, Download the patches for your favorite music software.


2) First Connection - Set up

Find and open Audio Midi Setup.

2.1) First Connection - Set up

Click Window and open the MIDI Studio.

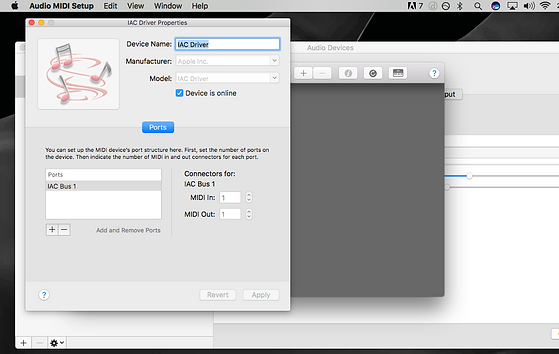

2.2) First Connection - Set up

Click on IAC Driver and make sure that the Device is online.

3) First Connection - With the MacOS App

Open the MacOS App and click Connect T8. Make sure you have activated your Bluetooth on the Mac.

Insert the pairing code 123456 and click pair.
Now you are ready to go!

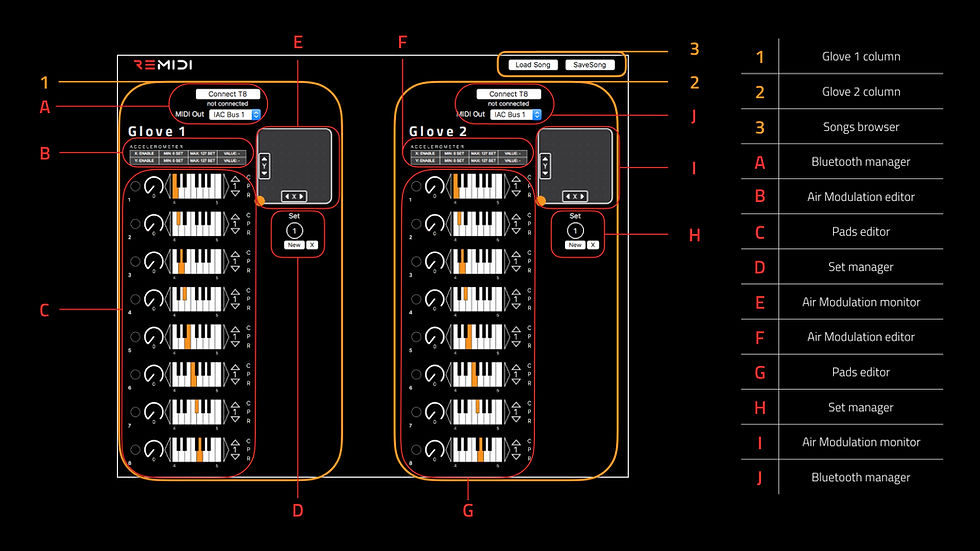

4) MacOS App - Main Features

With ReReoute you'll be able to:

​

- Save/Load your Songs

​

- Edit each Pad: choose the octave and decide if you want a single note or a chord.

- Able/Disable the air-modulation: this will allow you to use your movement to interact with sounds. You can also set the min and the MAX if needed.

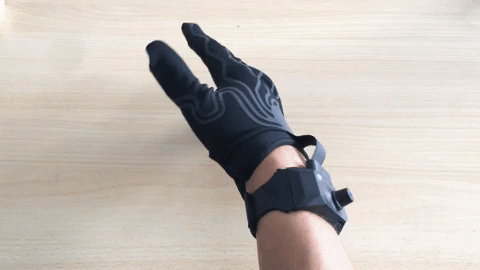

5) MacOS App - How to set the min for the X

Enable the X, twist the wrist and choose your min. Check the dot on the screen, It will help you!
Once you are done, press min.
You can now save your set and keep this value for the next times.

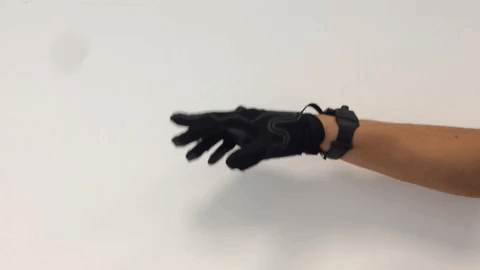

6) MacOS App - How to set the MAX for the X

Enable the X, twist the wrist and choose your MAX. Check the dot on the screen, It will help you!
Once you are done, press MAX.
You can now save your set and keep this value for the next times.

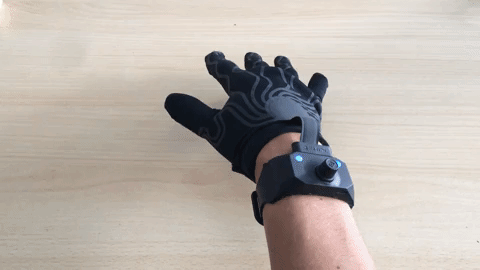

7) MacOS App - How to set the min for the Y

Enable the Y, turn your wrist up and choose your min. Check the dot on the screen, It will help you!

Once you are done, press min.
You can now save your set and keep this value for the next times.

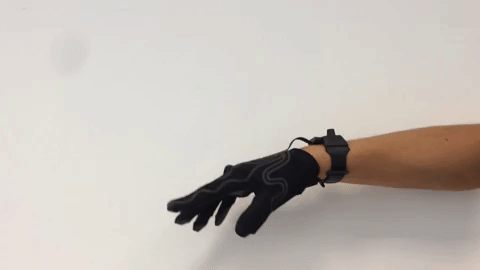

8) MacOS App - How to set the MAX for the Y

Enable the Y, turn your wrist up and choose your MAX. Check the dot on the screen, It will help you!

Once you are done, press MAX.
You can now save your set and keep this value for the next times.

9) MacOS App - How to edit the sensors

You can individually edit each sensor of the glove.
For each sensor you'll be able to choose the octave and decide if you want a single note or a chord.

10) MacOS App - How to change the midi channel

You can change, for every sensor, the midi channel: from 1 to 16.

11) MacOS App - How to save and load a song

Once you have edited your set, you can save it and use it for the next time.
All your preferences will be saved: accelerometers, midi channel, sensors notes etc.
